Build a Telegram Trading Bot

Create a no-code Telegram bot that manages Binance trades using AI agents and secure credential storage

Build a fully functional Telegram bot that allows users to interact with their Binance accounts through natural language. The bot uses an AI agent to understand user requests and execute trading operations on their behalf — all configured through the ServFlow dashboard without writing code.

What you’ll build:

• A Telegram bot that responds to messages via webhook
• Secure per-user credential storage in MongoDB
• AI-powered natural language processing for trading commands
• Dynamic Binance integration using stored credentials
• Account balance checking and price history tools

---

Import & Run

Get started immediately by importing the complete workflow:

1. Download the Configuration

   Download the workflow from the ServFlow Cookbook

2. Import into ServFlow

   In the ServFlow dashboard, click Import in the Files panel and select the downloaded YAML file

3. Configure Integrations

   Set up the required integrations:

   • mongo-main — MongoDB for storing user credentials
   • open-ai-main — OpenAI for the AI agent
4. Add Your Bot Token

   Go to Settings → Secrets and add:

   Name	Value
   TELEGRAM_BOT_TOKEN	Your bot token from BotFather

5. Set the Telegram Webhook

   Tell Telegram where to send messages:

   curl -X POST "https://api.telegram.org/bot<YOUR_BOT_TOKEN>/setWebhook" \
     -H "Content-Type: application/json" \
     -d '{"url": "https://your-servflow-domain.com/telegram"}'

6. Test Your Bot

   Open your bot in Telegram and try:

   • /save_creds your_api_key your_secret_key — Save Binance credentials
   • “What’s my account balance?” — Check your balance
   • “Show me BTC price history for the last 12 hours” — Get price data

For local development, use ngrok to expose your local ServFlow instance to the internet.

---

How It Works

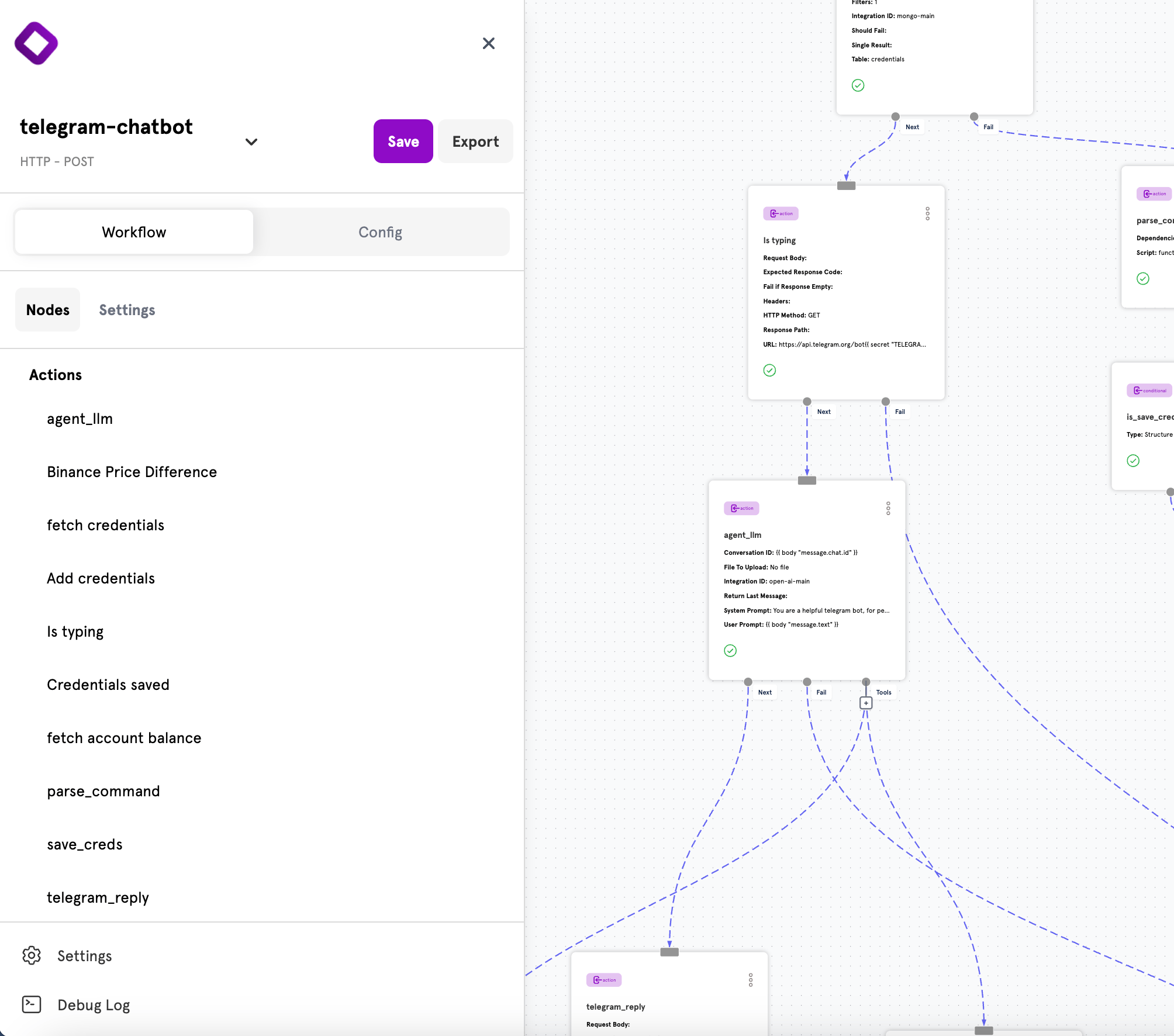

The rest of this guide explains how the imported workflow is structured and what each component does.

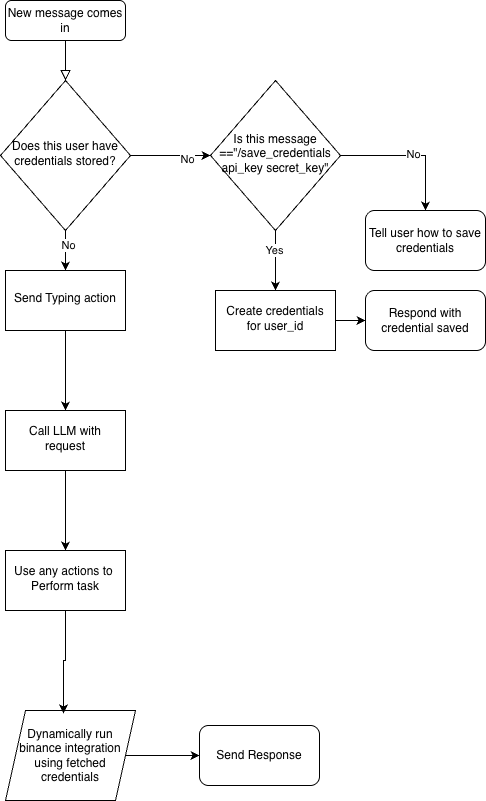

The workflow follows this decision tree:

1. New message arrives → Check if user has stored Binance credentials
2. If credentials exist → Send typing indicator → Process with AI agent → Send response
3. If no credentials → Check if message is a /save_creds command
4. If save command → Store credentials → Confirm to user
5. If not save command → Tell user how to save credentials

---

Workflow Entry Point

The workflow listens for Telegram webhook requests via an HTTP POST endpoint.

Setting	Value	Purpose
Listen Path	/telegram	The URL path Telegram sends messages to
HTTP Method	POST	Telegram webhooks use POST requests

Telegram sends webhook payloads as JSON containing message details. The key fields are message.chat.id, message.from.id, and message.text.

---

Telegram Field Presets

Throughout this workflow, you’ll see references to Telegram message data. ServFlow automatically detects Telegram webhooks and provides convenient presets in the content editor.

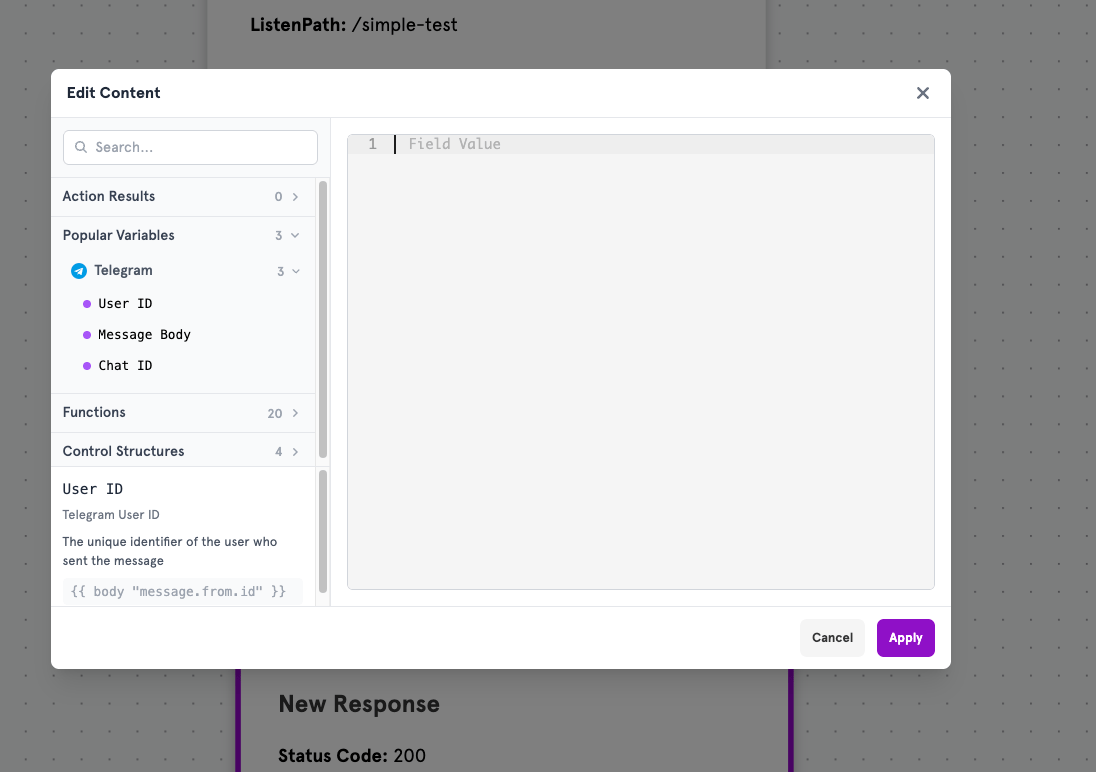

When editing any field, open the content editor and expand Popular Variables → Telegram:

Preset	Template Syntax	Description
User ID	{{ body "message.from.id" }}	Unique identifier of the message sender
Message Body	{{ body "message.text" }}	The text content of the message
Chat ID	{{ body "message.chat.id" }}	The chat/conversation identifier

Click any preset to insert it automatically — no need to memorize the syntax!

---

Action: Fetch Credentials

Type: fetch

This action checks if the user has already stored their Binance API credentials in the database.

Field	Value	Purpose
Integration ID	mongo-main	The MongoDB integration to query
Table	credentials	Collection storing user credentials
Single Result	✅ Enabled	Return one document instead of an array
Should Fail	✅ Enabled	Trigger fail path if query fails
Fail If Empty	✅ Enabled	Treat no results as a failure

Filter Configuration

Field	Operation	Comparator
user_id	==	User ID preset

Routing

Path	Destination	When
Next	Is typing	User has stored credentials
Fail	parse_command	No credentials found

---

Action: Parse Command

Type: javascript

When a user doesn’t have credentials, this action parses the incoming message to check if they’re sending a /save_creds command.

Script Logic

function servflowRun(vars) {
  const text = "{{ body \"message.text\"}}";
  const match = text.trim().match(/^\/(\w+)\s*(.*)$/);

  if (!match || match[1].toLowerCase() !== "save_creds") {
    return { command: "", args: [] };
  }

  const command = "/" + match[1];
  const args = match[2]?.trim() ? match[2].trim().split(/\s+/) : [];

  return { command, args };
}

Output

Field	Description
.parse_command.command	The parsed command (e.g., /save_creds) or empty string
.parse_command.args	Array of arguments (e.g., ["api_key", "secret_key"])

---

Conditional: Is Save Credentials

Type: conditional

Checks if the parsed command is /save_creds.

Field	Value
Expression	{{ eq .parse_command.command "/save_creds" }}

Routing

Path	Destination	When
True	save_creds	User is saving credentials
False	Add credentials	User needs instructions

---

Action: Save Credentials

Type: store

Stores the user’s Binance API credentials in MongoDB.

Field	Value	Purpose
Integration ID	mongo-main	MongoDB integration
Table	credentials	Collection to store in

Fields Stored

Field Name	Value	Purpose
user_id	User ID preset	Links credentials to Telegram user
api_key	{{ index .parse_command.args 0 }}	First argument from command
api_secret	{{ index .parse_command.args 1 }}	Second argument from command
saved_at	{{ now }}	Timestamp for record-keeping

---

Action: Credentials Saved (HTTP)

Type: http

Sends a confirmation message to the user via Telegram.

Field	Value
HTTP Method	POST
URL	https://api.telegram.org/bot{{ secret "TELEGRAM_BOT_TOKEN" }}/sendMessage

Request Body

Field	Value
chat_id	Chat ID preset
text	Credentials saved successfully

---

Action: Add Credentials (HTTP)

Type: http

Tells users without credentials how to save them.

Field	Value
HTTP Method	POST
URL	https://api.telegram.org/bot{{ secret "TELEGRAM_BOT_TOKEN" }}/sendMessage

Request Body

Field	Value
chat_id	Chat ID preset
text	Please add credentials first with /save_creds <api_key> <secret_key>

---

Action: Is Typing (HTTP)

Type: http

Sends a “typing” indicator so users know the bot is processing their request.

Field	Value
HTTP Method	GET
URL	https://api.telegram.org/bot{{ secret "TELEGRAM_BOT_TOKEN" }}/sendChatAction?chat_id={{ body "message.chat.id" }}&action=typing

---

Action: Agent LLM

Type: agent

The AI agent that understands natural language and decides which tools to use.

Field	Value	Purpose
Integration ID	open-ai-main	OpenAI integration
Conversation ID	Chat ID preset	Maintains context across messages
Return Last Message	❌ Disabled	Return full agent response

System Prompt

You are a helpful telegram bot for performing actions on behalf of a user. You have access to tools to help you achieve your request.

User Prompt

Message Body preset — the actual message text from the user.

Tool: Price Difference

Allows the agent to fetch price history data.

Field	Value
Type	workflow
Name	price_difference
Description	Gets price history ticks for a period. The period is the number of 1hr intervals (e.g., 12), the symbol is the pair (e.g., BTCUSDT)
Parameters	period, symbol
Start Action	Binance Price Difference
Return Value	{{ escape (jsonout .get_price_difference) }}

Tool: Account Balance

Allows the agent to check the user’s Binance balance.

Field	Value
Type	workflow
Name	account_balance
Description	Fetches the account balance of the user
Parameters	(none)
Start Action	fetch account balance
Return Value	{{ .get_account_balance }}

---

Action: Binance Price Difference

Type: binance/pricedifference

Called by the agent’s price_difference tool.

Field	Value	Purpose
Integration ID	telegram_bot_cred_storage_binance	Dynamic Binance integration
Interval	1h	Candlestick interval
Period	{{ tool_param "period" }}	From agent tool call
Symbol	{{ tool_param "symbol" }}	From agent tool call

The tool_param function accesses parameters passed by the AI agent when it calls this tool.

---

Action: Fetch Account Balance

Type: binance/accountbalance

Called by the agent’s account_balance tool.

Field	Value	Purpose
Integration ID	telegram_bot_cred_storage_binance	Dynamic Binance integration
Futures	❌ Disabled	Query spot account
Symbol	(empty)	Return all balances

---

Action: Telegram Reply (HTTP)

Type: http

Sends the AI agent’s response back to the user.

Field	Value
HTTP Method	POST
URL	https://api.telegram.org/bot{{ secret "TELEGRAM_BOT_TOKEN" }}/sendMessage

Request Body

Field	Value
chat_id	Chat ID preset
text	{{ .agent_llm | escape }}

The escape function ensures special characters in the AI response don’t break the JSON payload.

---

Dynamic Binance Integration

The key to supporting multiple users is the lazy-loaded integration that uses each user’s stored credentials.

Field	Value	Purpose
ID	telegram_bot_cred_storage_binance	Referenced by Binance actions
Type	binance	Binance exchange integration
Lazy Load	✅ Enabled	Only initialize when first used

Dynamic Credentials

Field	Value	Source
API Key	{{ .fetch_credentials.api_key }}	From MongoDB query
Secret Key	{{ .fetch_credentials.api_secret }}	From MongoDB query
Testnet	❌ Disabled	Use production (enable for testing)
Timeout	30	Request timeout in seconds

Lazy Load means the integration initializes only when an action uses it. At that point, the credentials from the fetch_credentials action are available, allowing each user’s Binance operations to use their own stored API keys.

---

Response Definitions

Success Response

Field	Value
Name	success
Status Code	200
Response Field	message: Reply sent via Telegram

Error Response

Field	Value
Name	error
Status Code	500
Response Field	error: {{ .error }}

---

Testing

Use ServFlow’s test mode to simulate requests without setting up the Telegram webhook.

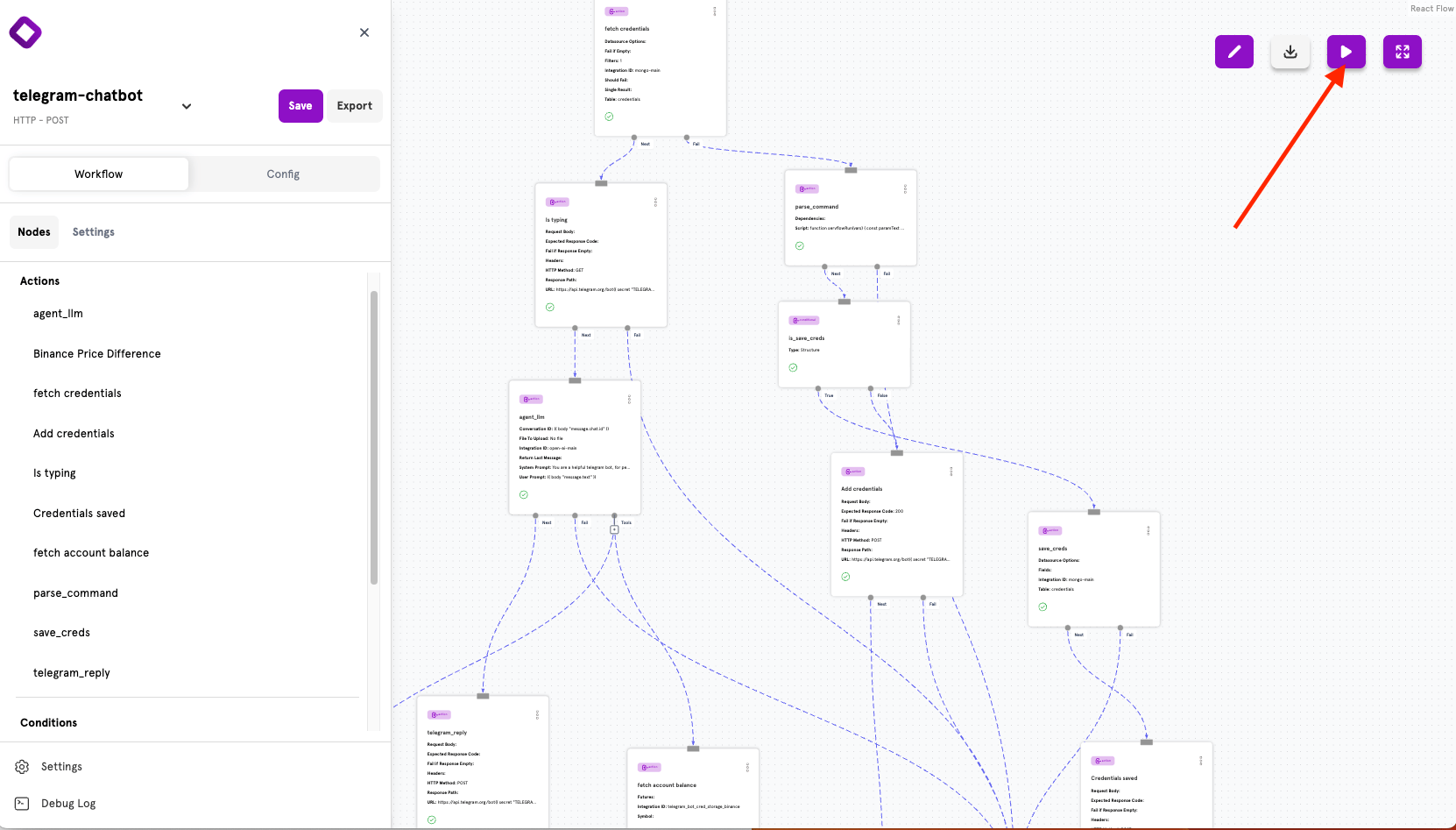

Click the Play button in the top-right corner and enter a sample payload:

{
  "message": {
    "message_id": 123,
    "from": {
      "id": 12345678,
      "first_name": "Test",
      "username": "testuser"
    },
    "chat": {
      "id": 12345678,
      "type": "private"
    },
    "text": "What is my account balance?"
  }
}

---

Security Considerations

Important security notes:

1. Never share your bot token — Anyone with the token can control your bot
2. Use HTTPS — Always deploy with SSL to protect credentials in transit
3. Consider encryption — For production, encrypt stored API credentials at rest
4. Rate limiting — Consider adding rate limiting to prevent abuse
5. API key permissions — Use Binance API keys with minimal required permissions

---

Extending the Bot

Now that you understand how the bot works, consider adding:

• More Binance tools — Spot/futures trading, order management
• Price alerts — Scheduled checks that notify users of price movements
• Trade logging — Store trades to MongoDB for user history
• Multi-exchange support — Add integrations for other exchanges

---
